Building C · Artesian Football Complex · MSD of Martinsville

Renderings

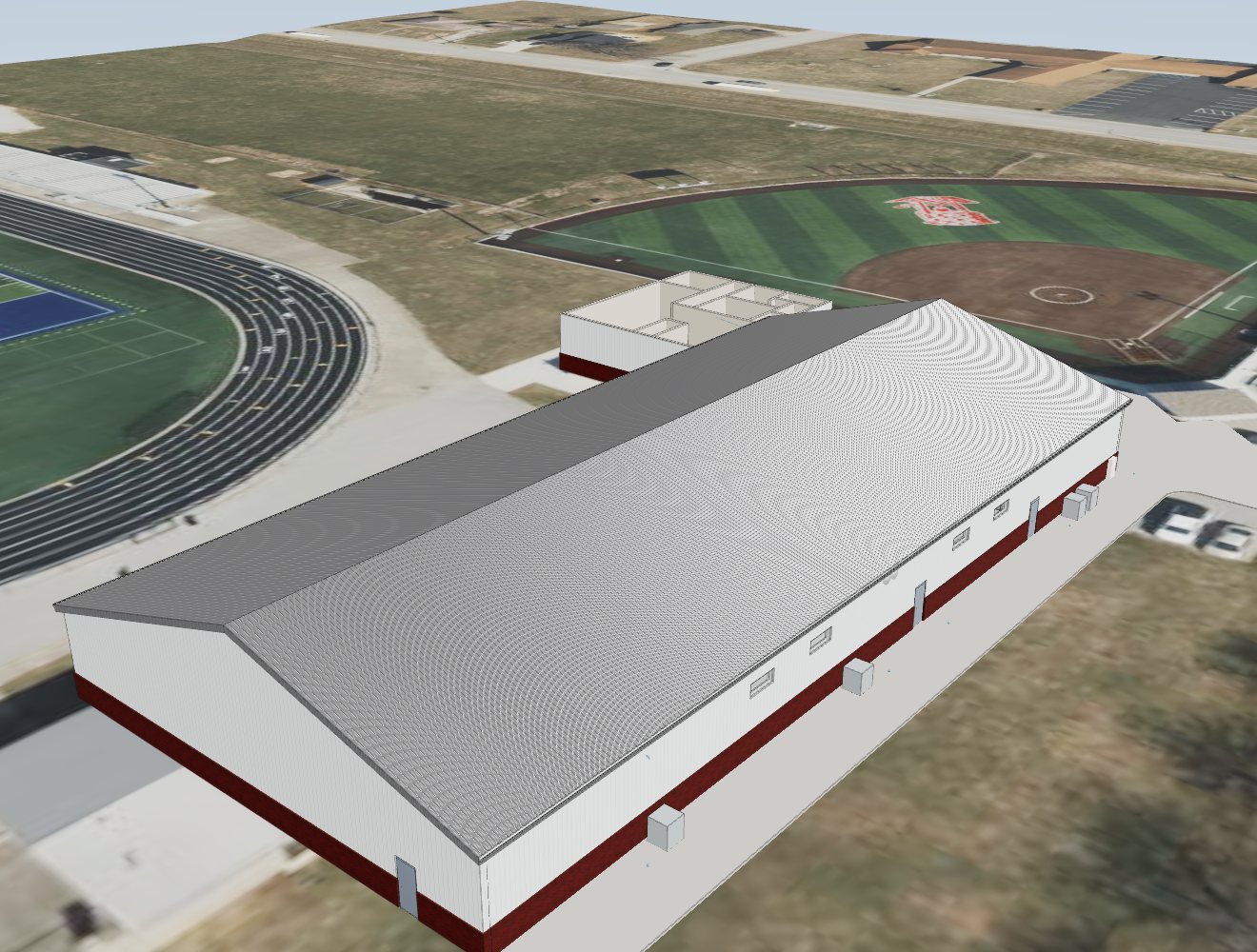

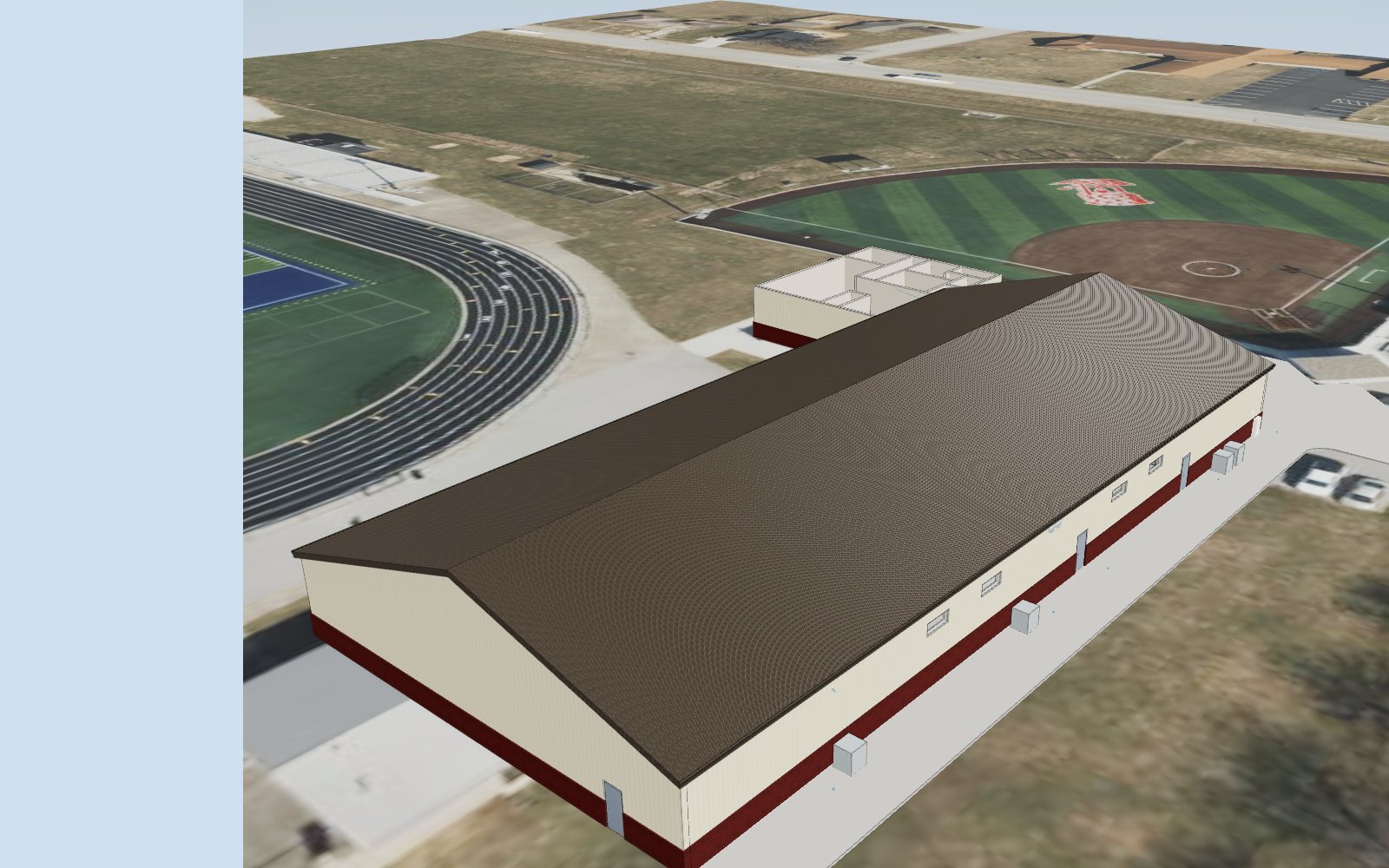

Aerial from the southwest: the new 80' × 170' locker room building, with the re-skinned softball locker room in front

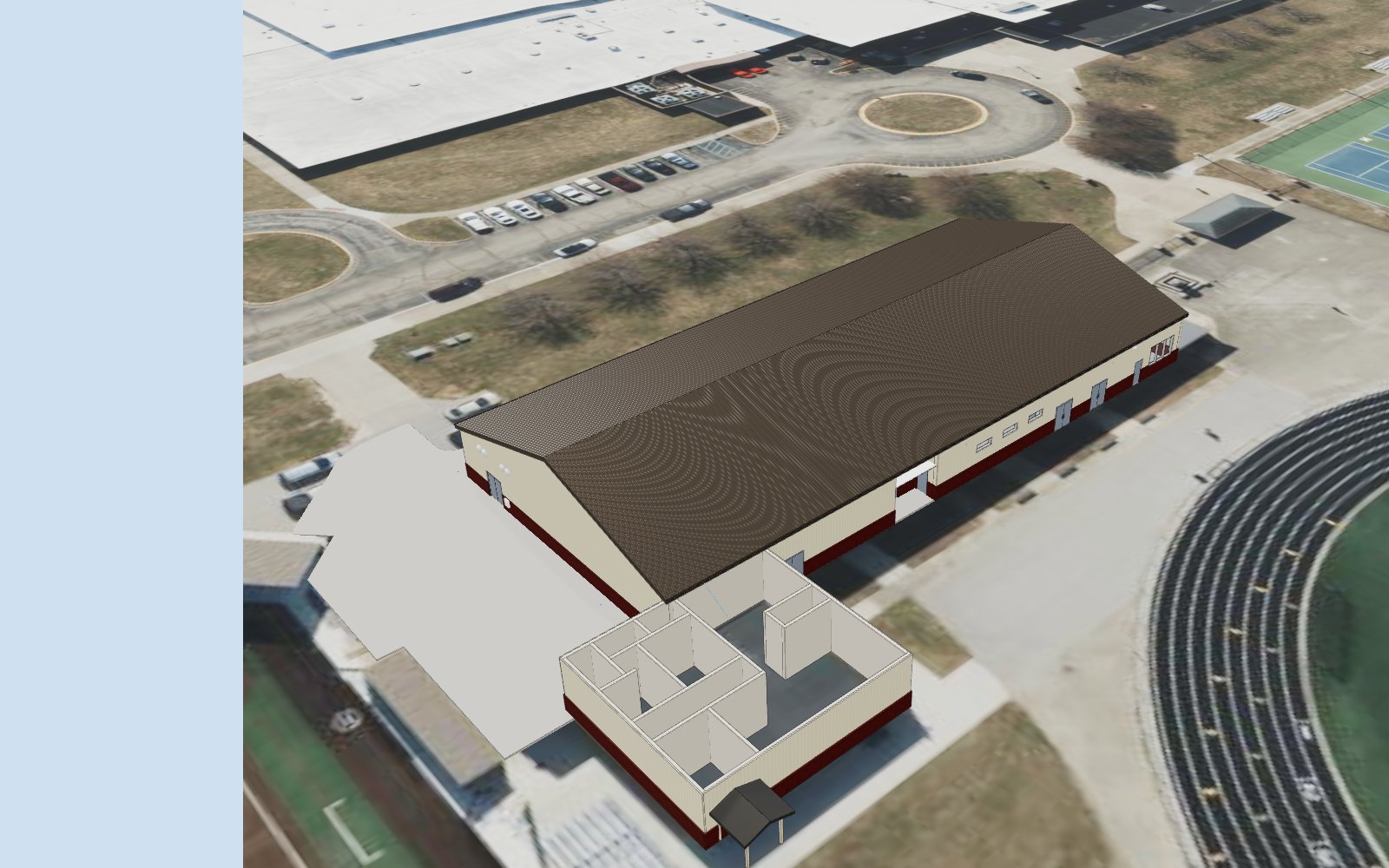

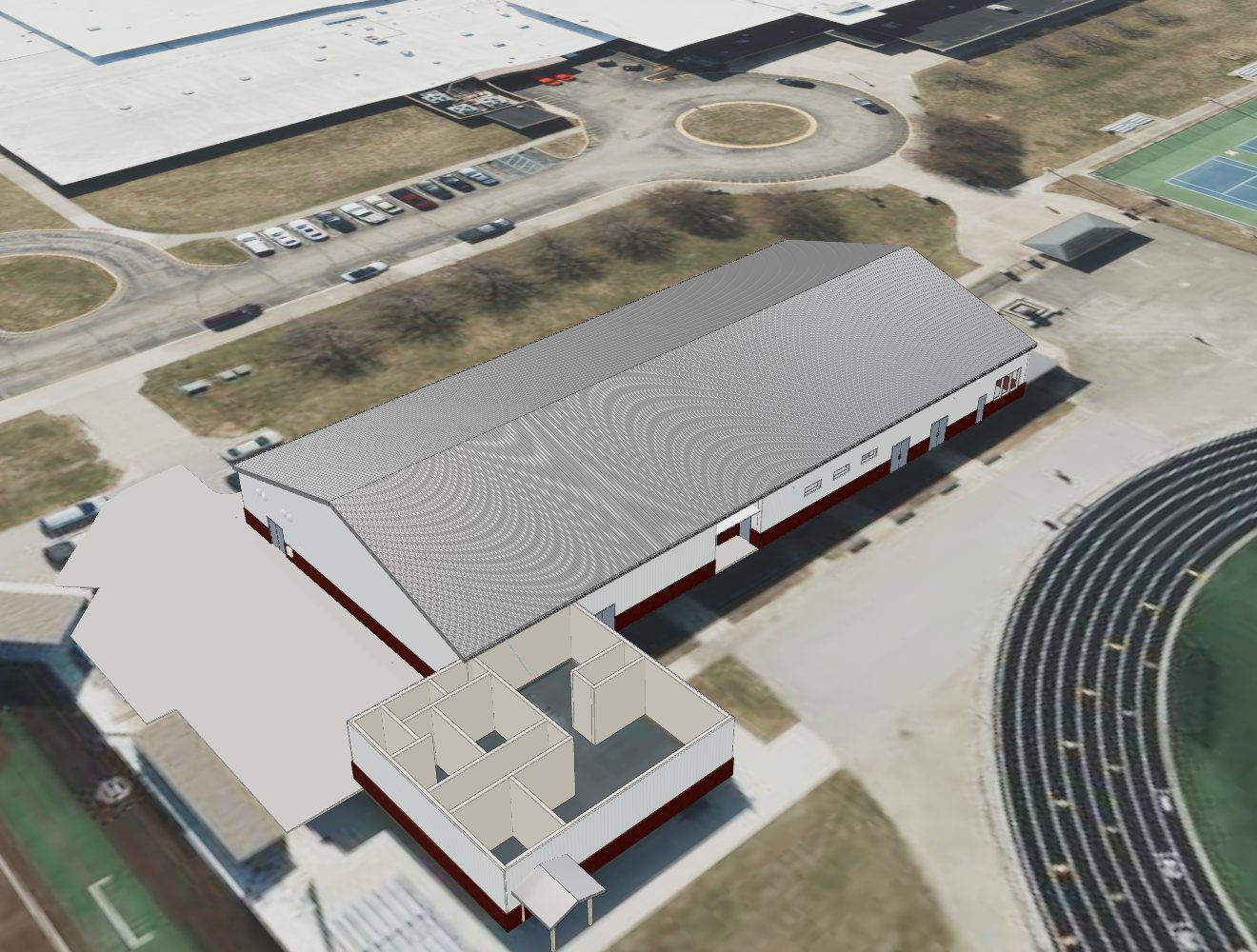

Aerial from the northeast, toward the softball field

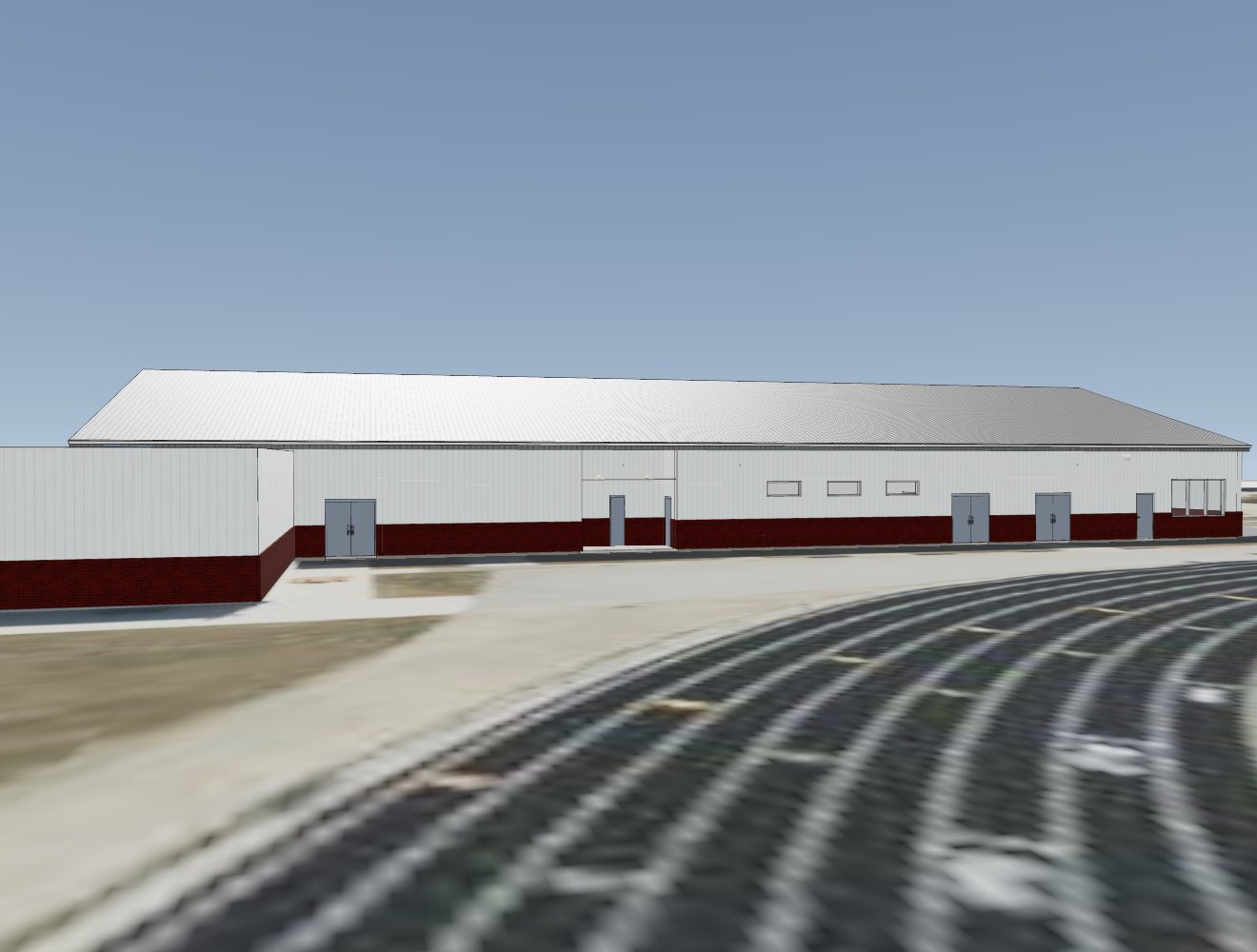

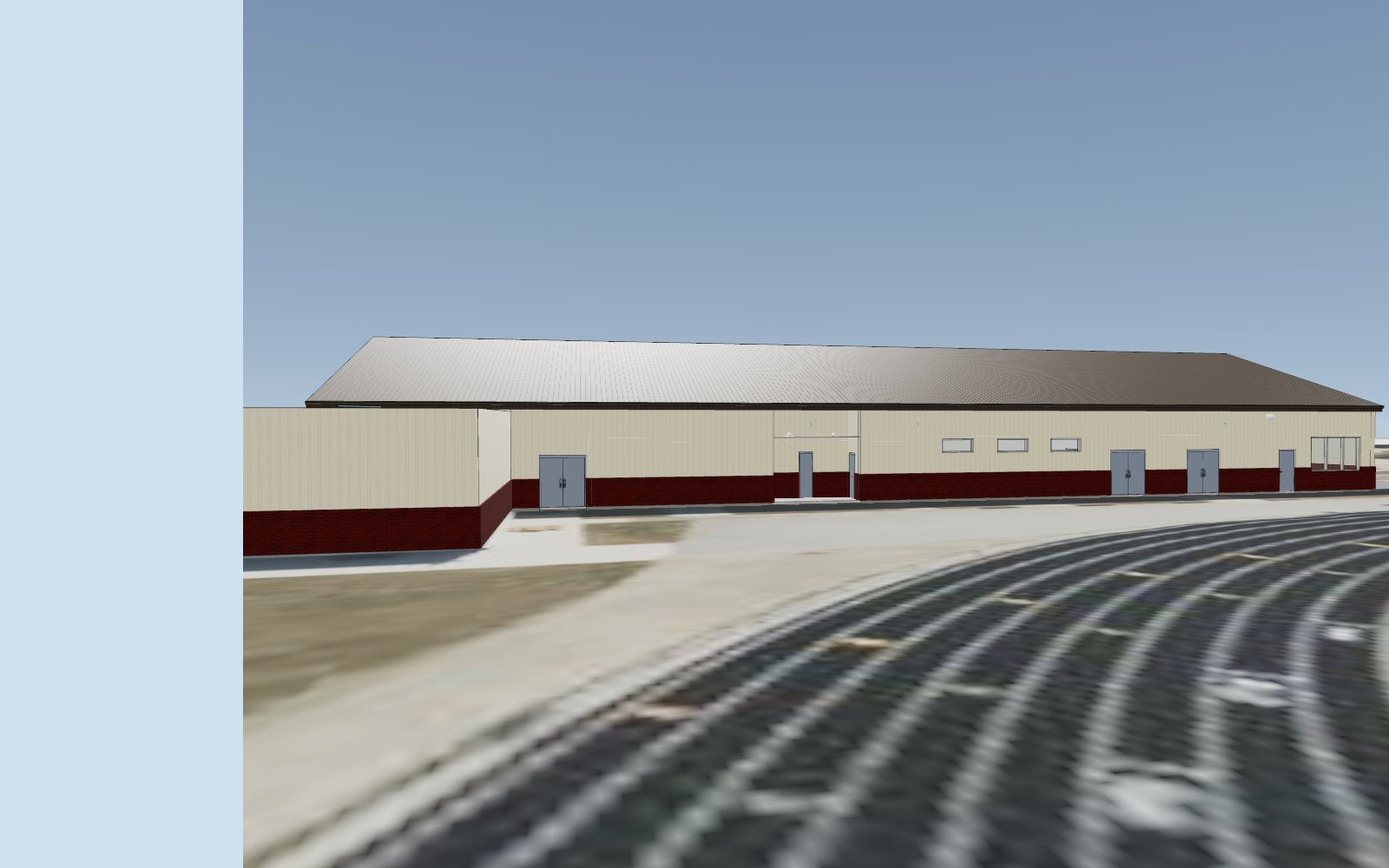

Eye level from the north (restroom side), with the asphalt drive

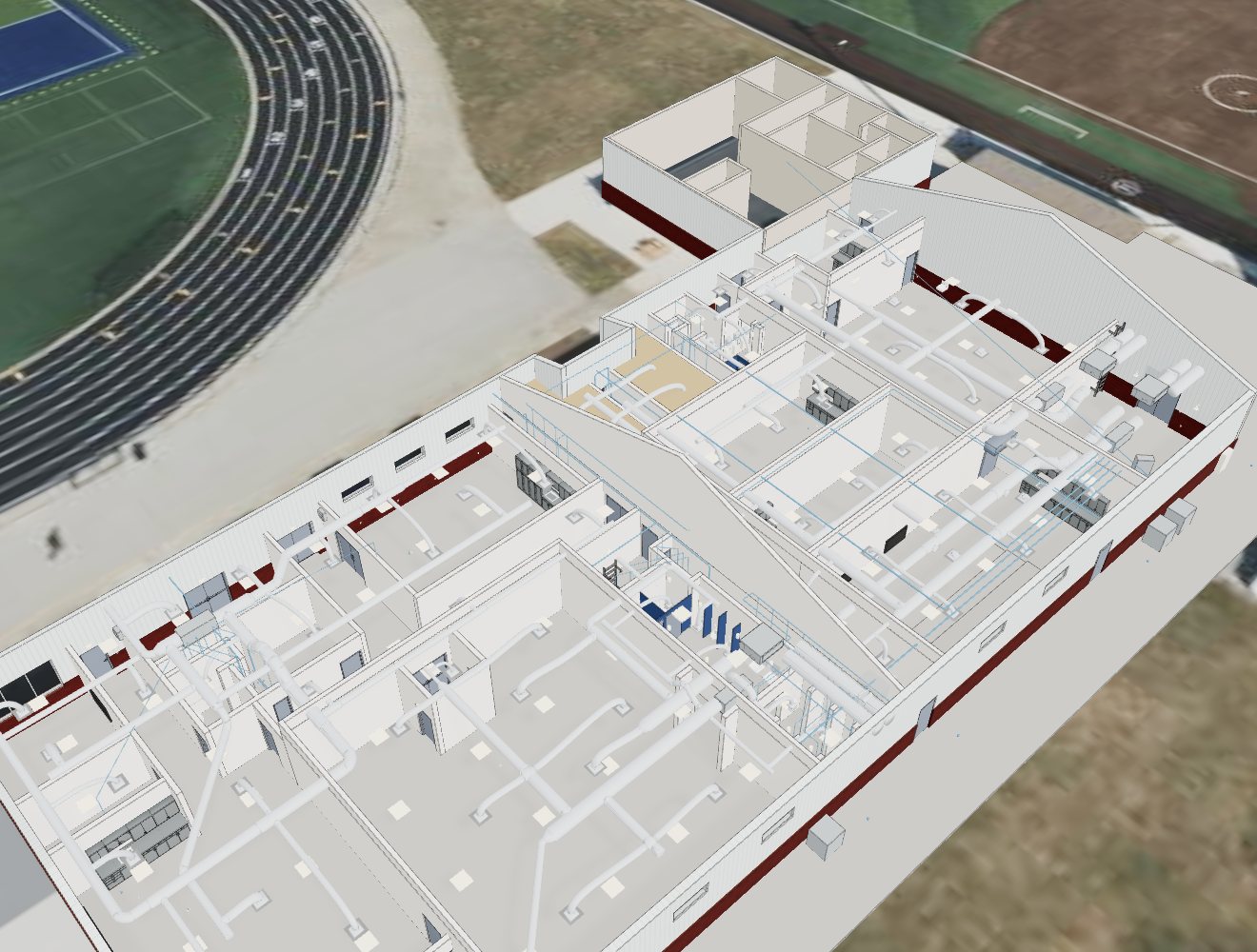

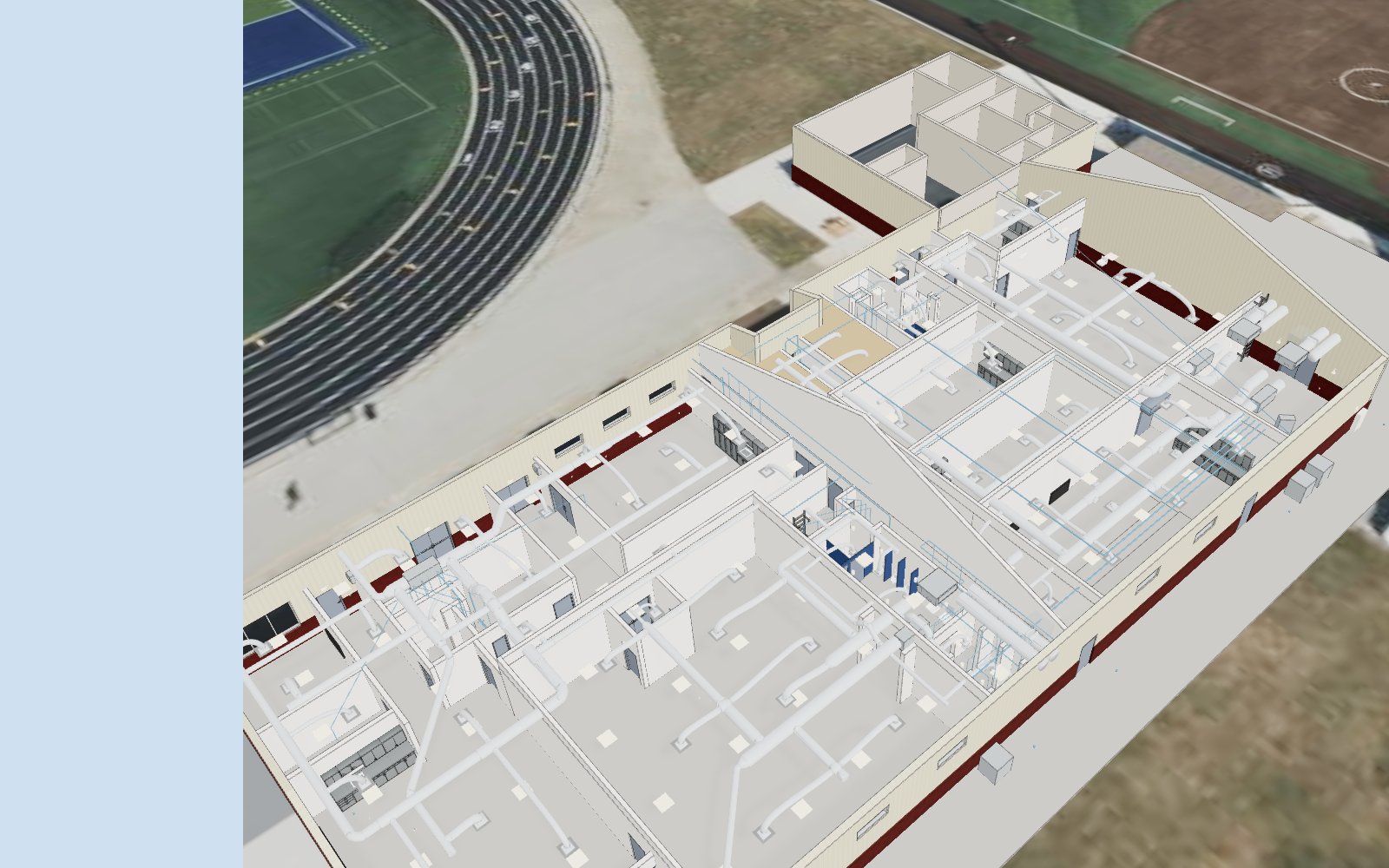

Interior cutaway with the roof and ceilings off

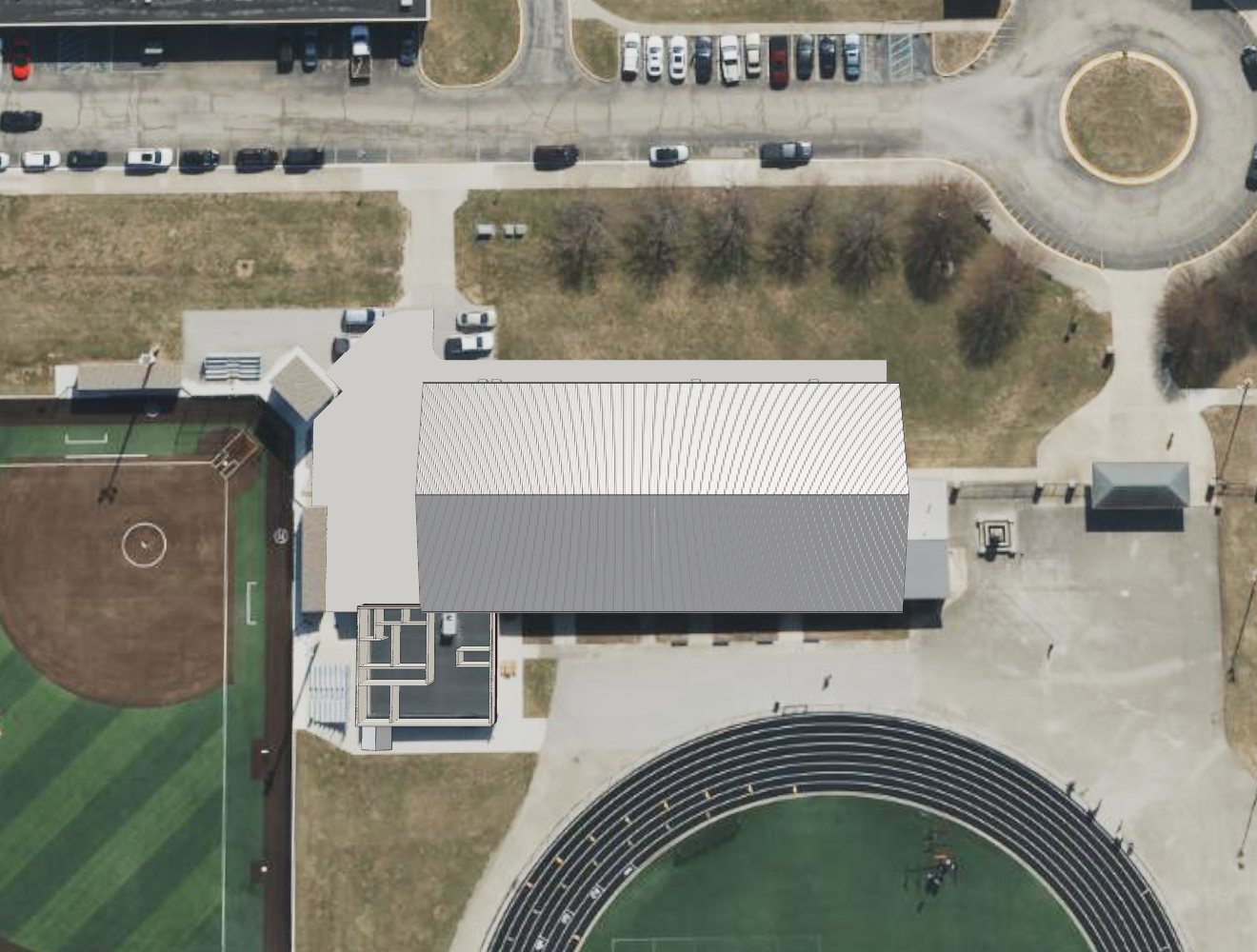

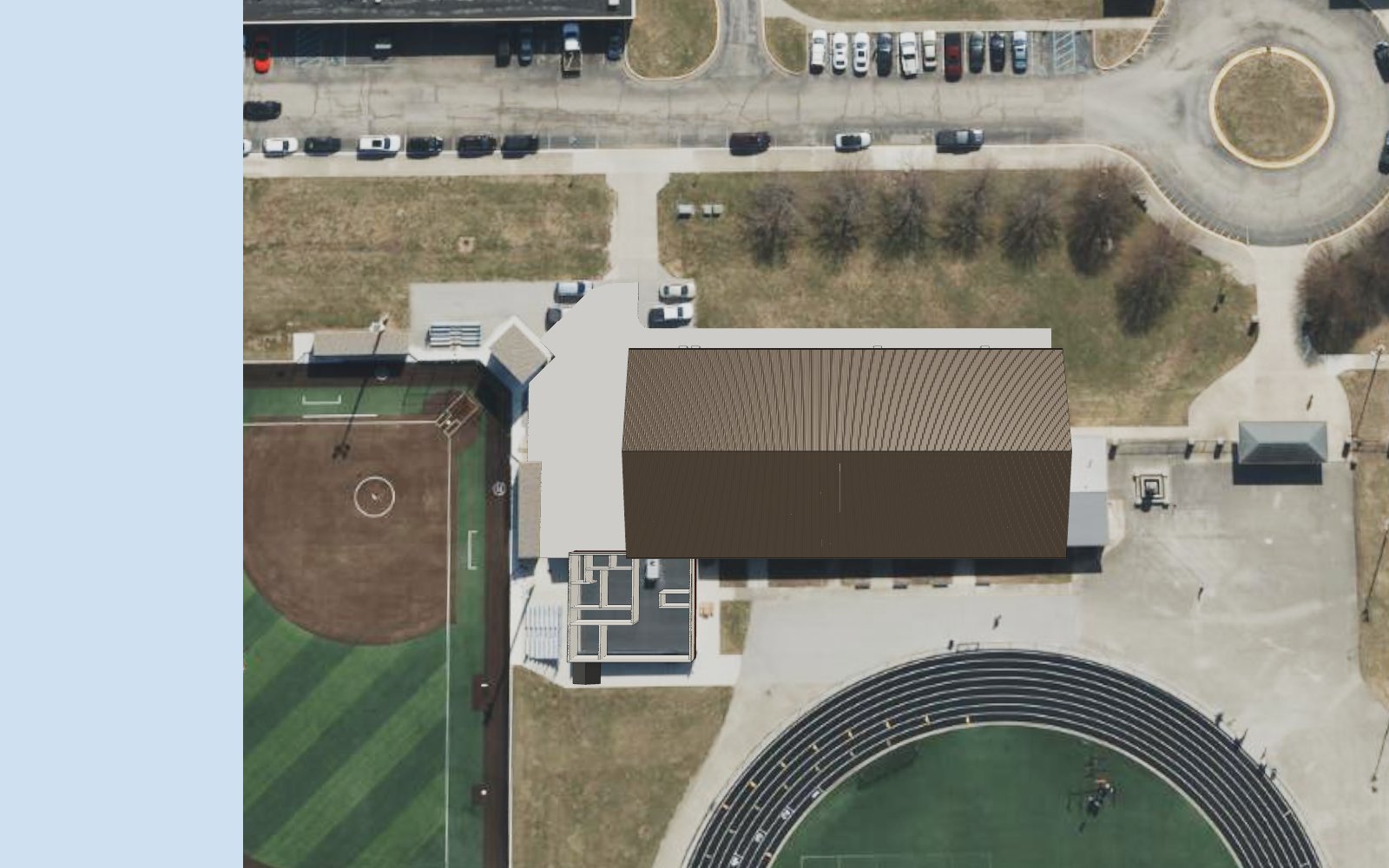

Top view of the site: walks, parking, fence and the Artesian Well

Interactive 3D model

The model is built from the final-plans IFC (2026), plus the site sheets A703–A706 and X10, laid on Indiana lidar ground and aerial imagery. Drag to orbit, and pinch or scroll to zoom. The side panel has finishes, layers, Foundation, Exterior concrete, rooms, interior/MEP/site views and walk mode. Click a part to see its product info. Right-click or long-press a part to hide it, hide everything of its type, or show all hidden parts. Walls between you and the room fade out automatically; you can turn this off under Display. ASSUMED The plumbing comes from the IFC and is a guide only: what was built is different.

Open the model full screen ? How to use the 3D model

The Building

Size & code

New football locker room building, 80' × 170' (13,600 SF), 1 story
Existing softball locker room 1,920 SF, re-skinned, with a 64 SF (8' × 8') porch addition
Occupancy A-3, construction type V-B
Final inspection 8/26/2026, with a partial certificate of occupancy for the new locker room. First home game 8/28/2026.

Shell

GPB post-frame shell: 2×6 walls, 80' trusses at 4' o.c., 3.5/12 gable roof
G-Rib 40-year 29 ga roof; G10 liner on the walls and ceiling with R38 blown fiberglass
48" brick wainscot by L&L Masonry (Change Order #1) on an 8" CMU brick ledge
8" painted CMU interior walls
6" seamless gutters and one row of snow guards

Rooms (IFC)

100 Corridor, 101 Women's RR, 102 Men's RR, 103 Restroom, 104 Shower, 105 Storage, 106 Vestibule, 107 Coach's Office, 108 Vestibule, 109 Visitor's Locker Room, 111 Mechanical & Electrical, 112 Team Meeting Room, 113 Equipment Storage, 114 Artesian Room, 115 Corridor, 116 Corridor, 117 Janitor, 118 Passage, 119 Artesian Locker Room, 120 Restroom, 121 Shower, 122 Restroom, 123 Official's Room, 124 Football Coach's Office, 125 Break, 126 Lockers, 127 Head Coach Office, 128 Corridor, 129 Storage, 130 Restroom, 130B Chase, 131 Laundry, 132 Training, 133 Chase, 134 Chase, 135 Chase, 136 Chase, 137 Chase

Existing softball building: E101 Locker Room, E102 Storage, E103 Concessions, E104 Office, E105 Mechanical, E106 Storage, E107 Restroom, E108 Coridor, E109 Vestibule, E110 Dugout

Mechanical & plumbing

3 Alpha Aire II DOAS units (8 ton) by AllTrades
Radiant heat in the floors (benches can't be anchored more than 1" deep)
Culligan Hi-Flo 3e water softener
Sloan Regal 111 (1.6 gpf) and Regal 186 (1.0 gpf) flush valves, Oct 2026

Floors

Epoxy flake with a polyaspartic top coat (TAK); the showers get ADA curbs
Milliken carpet planks in the offices
Polished concrete planned over Christmas break 2026, after a test spot in the officials' room

Doors & security

Hollow metal doors and frames (CDF) with SFIC hardware (IN Door & Hardware), re-cored by the school to Medeco
Keyed removable mullions on the double doors (Change Order #2)
APTEK access control on 8 doors, 9 cameras and about 40 network drops

Site

Paving (A704–A706)

4" concrete walks on 2" #11 stone
HMA: full-depth, mill and 1.5" resurface, and surface seal with crack repair
Stalls 9' o.c., ADA aisles, and a no-parking zone
Concrete parking curbs pinned about 24" to center (ASSUMED)

Utilities (X10)

2" gas line lowered (Miller Pipeline for CenterPoint), with a new gas meter
Duke electric service; electrical box north of the ticket booth lowered (Live Wire)
Fiber handhold and conduit repaired; APTEK/Galaxy One pulled new fiber

Fence & landscape

Wrought iron fence and main gates
Chain link privacy fence around the HVAC units and the electrical service
Artesian Well: two rock tiers with a pump, and alternating red and yellow mums
Retention pond in Broyer's scope (pending permits)

The ground is Indiana 2016–2020 lidar (bare earth) with the current IndianaMap aerial, which predates construction. Grading next to the building is ASSUMED (no grading plan on file).

FF&E, finishes & products

Brands, models and colors come from Reed's invoices, the selection manuals, the spec sheets and email. Anything not confirmed is marked ASSUMED.

Category	Item	Brand	Model / spec	Color	Qty	Location	Links	Source / status
Exterior shell	Metal roof	Graber Post Buildings (GPB)	G-Rib 40 yr 29 ga w/ Therma Guard, 3.5/12 gable, 1 row snow guard per side	Color ASSUMED (contract: "Colors to be determined")	80x170 bldg	Roof	site	GPB contract #71682 (11/26/2025) ASSUMED
Exterior shell	Metal siding	Graber Post Buildings (GPB)	Contract: Board & Batten 10" 26 ga w/ house wrap + 7/16" OSB. IFC wall type: G-Rib	Color ASSUMED		Exterior walls	site	GPB contract #71682; IFC wall types ASSUMED
Exterior shell	Interior liner walls + ceiling	Graber Post Buildings (GPB)	G10 10 yr 29 ga liner; ceiling liner w/ R38 blown fiberglass	White ASSUMED		Mechanical / non-ACT areas	site	GPB contract #71682 ASSUMED
Exterior shell	Gutters + downspouts	Graber Post Buildings (GPB)	6" seamless incl. accessories	Color ASSUMED		Eaves		GPB contract #71682; Provided Items ASSUMED
Exterior shell	Brick wainscot	L&L Masonry LLC (installer)	Brick on perimeter, base flashing/weeps/ties; height raised 40" to 48" (Change Order #1)	"Bricks to match existing building" - brick name/color not on file	Perimeter	New building base		L&L quote #949 (11/21/2025); Change Order #1 (3/31/26) Brick name ASSUMED
Exterior shell	8" CMU walls	L&L Masonry LLC	8" CMU 10-12 ft, rod & cell 6 ft o.c., bond beam, bull nose at doors/corners	Painted (SW ProMar 200)		Interior bearing walls		L&L quote #949
Exterior shell	Aluminum frame windows	ASSUMED via GPB/Indy Glass	26" x 64" aluminum frame window	Color ASSUMED	4	Per Change Order #3		Change Order #3 (3/31/26) ASSUMED
Doors	Hollow metal doors + frames	CDF Distributors	18 ga galvannealed polystyrene-core HM doors, Steelcraft hinge prep, 161 lock prep; 16 ga 3-piece knockdown masonry frames; 4-1/2" ball-bearing NRP hinges 26D	Painted ASSUMED	Per door schedule	All doors	site	CDF quotes QB-09435555 / QB-09517142; Martinsville Door Schedule
Doors	Door hardware	Indiana Door & Hardware Specialties	17 cylindrical SFIC locks, 31 closers (8 w/ stop arm), 23 exit devices w/ lever trim, 11 Medeco exterior cylinders, 19 interior cylinders; re-cored by school to Medeco	Satin chrome / 26D ASSUMED	see qty	All doors		IN Door & Hardware inv. 140696AA (5/21/26) + 5 follow-up invoices Lock/closer brand ASSUMED
Doors	Keyed removable mullions	CDF Distributors	4900X keyed removable mullion set 84" (6 non-rated + 1 fire rated); 3901 rim cylinder 26D x7	26D	7	All double doors except #132	site	CDF quote 450721; Change Order #2
Doors	Access control + cameras + network	APTEK (contract w/ GM Development)	Access control 8 doors, 9 cameras (Cat 6 plenum), ~40 network drops, Aruba switch		8 doors / 9 cams	Building C	site	APTEK quotes #002421 V3, #002495 V1
Flooring	Epoxy flake floor + showers	TAK Floor Coatings	Diamond grind CSP 2-3, MVB epoxy base, 1/4" full-broadcast flake, polyaspartic top coat, polyurea joint fill	Flake: OASIS custom blend	4,963 SF + 518 LF joints	Restrooms, showers, locker rooms (X3 plan)	site	TAK invoice #75 (6/19/26); X3 Floor Covering 11-20-25
Flooring	Carpet tile (planks)	Milliken	Color Field Patina PAT108 (Dim Stone) + PAT249-52 (Billion)	Dim Stone / Billion	~1,030 SF	Offices (carpet plank on X3 10-21-26)	site	Wagler Floor & Design inv. 4419 (7/25/26)
Flooring	Carpet adhesive + reducer	Milliken / Schluter	Milliken Non-Reactive Standard Modular Adhesive; Schluter Vinpro-U reducer 9/32"	Reducer: brushed nickel		Carpet edges	site	Wagler inv. 4419
Flooring	Cove base	Johnsonite (adhesive)	4" cove base; Johnsonite 960 wall base adhesive	Charcoal	35 LF	Carpet rooms		Wagler inv. 4419 Base brand ASSUMED
Flooring	Polished concrete (planned)	Contractor TBD	Mechanical grind + polish; test spot in officials room; rest over Christmas break 2026	Clear	Rooms marked on X3 10-21-26 + north restrooms (Kyle 10/21)	Corridors, team rooms		Martinsville AFC - Floor Covering 10-21-26; emails 10/1 and 10/21/26 Planned - ASSUMED
Flooring	ADA shower curbs	Brand not on file	ADA-compliant rollover shower curb system		All showers	Showers		Reed emails 8/31 + 10/1/26 ASSUMED
Walls / ceilings	Paint	Sherwin-Williams	SW ProMar 200	Base: GPB Grey; accents: Positive Red, Duct Blue (SW color numbers not on file)		Interior walls (accent locations per X10)	site	Building C - Final Selections.pdf / Selection Manual 5-29-26 Color numbers ASSUMED
Walls / ceilings	Acoustic ceiling	Armstrong (via Brown Brothers Lumber)	15/16" drop grid; 24x24 Fissured 949 (general) / Fine Fissured 928 (high moisture)	White		Ceilings	site	Building C - Final Selections.pdf / Selection Manual 5-29-26
Casework	Cabinets	Cabinets To Go	Hampton Pewter shaker: 13 BC36, 4 BC30, 2 DC318, 3 DC324, 5 SB36, 4 LC1884 pantry, 12 WC3630, 5 WC3618, 4 WC3030, 3 WC2430, 2 WC1830 + fillers/toe kick/scribe	Hampton Pewter	57 boxes	Break, team meeting, training, equipment, laundry, coach, officials	site	Cabinets To Go SO92422268 (6/11/26)
Casework	Countertops	Stoll Bros. Lumber	LivingStone solid surface w/ 4" backsplash, field measured + installed; WB24-BLK brackets x4 pr	Countertop color not on order - ASSUMED		Artisan, break, team meeting, training, equipment, laundry, coach, officials		Stoll Bros 2606-C28955 + 2607-C30284 (lowering) ASSUMED
Casework	Cabinet knobs	Brown Brothers Lumber	1-3/16" diameter knob	Satin nickel		Cabinets		Building C - Final Selections.pdf / Selection Manual 5-29-26
Toilet accessories	Toilet partitions	McMaster-Carr (ordered via GPB)	1" solid plastic	Dark Blue recommended (match softball locker room) - ASSUMED		Restrooms	site	Building C - Final Selections.pdf / Selection Manual 5-29-26; Allowance sheet (Div 10) ASSUMED
Toilet accessories	Mirror	Bobrick	B-165-1824	Stainless	18	Restrooms	site	Martinsville - Bathroom Items; Selection Manual
Toilet accessories	Baby changing station	ASI (installed); Koala Kare KB300-01 was selected	ASI 9012 surface-mounted plastic	Grey ASSUMED	2	Public restrooms	site · manual	Total Restroom TR-303115856; Selection Manual Model mismatch - ASSUMED
Toilet accessories	Shower seats	Bobrick	B-5181 reversible folding shower seat (L x3, R x7)	Phenolic	10	ADA showers	site	Total Restroom TR-303115856; Bathroom Items
Toilet accessories	Dressing seat	Bobrick	B-5191		1	ADA dressing	site	Bathroom Items list Supplier ASSUMED
Toilet accessories	Sanitary napkin disposal	Bobrick	B-270 surface-mounted	Stainless	7	Women / unisex	site	Total Restroom TR-303115856
Toilet accessories	Waste receptacle	Bobrick	B-367-60 12 gal surface-mounted	Stainless	13	Restrooms	site	Total Restroom TR-303115856
Toilet accessories	Toilet tissue dispenser	Scott Essential (Kimberly-Clark)	Coreless twin jumbo roll KCC09608	Black	15	Toilets	site	Total Restroom TR-303115856
Toilet accessories	Paper towel dispenser	Scott Essential (Kimberly-Clark)	Manual hard roll towel dispenser (KCC46253 per selection)	Black ASSUMED	13	Restrooms	site	Total Restroom TR-303115856; Bathroom Items
Toilet accessories	Soap dispenser	Scott Essentials	Manual liquid hand soap dispenser (92145)		12	Lavatories	site	Bathroom Items sheet 2 / Selection Manual Supplier ASSUMED
Toilet accessories	Grab bars	Jones Stephens	1-1/2" satin concealed flange: G13118 (18") x32, G13130 (30") x10, G13136 (36") x14, G13142 (42") x14	Satin stainless	70	ADA toilets / showers	site	Grabbars.com GB-32729, GB-33177, GB-33827, GB-34320
Plumbing	Water closets	American Standard	Madera FloWise 16-1/2" elongated flushometer bowl (3043.001.020)	White	per plan	Restrooms	site · manual	Specs folder; Brook Plumbing + Josh Specs
Plumbing	Toilet flush valves (as built)	Sloan	Regal 111, 1.6 gpf (replaced the 1.28 gpf sensor valves, Oct 2026)	Chrome	all WCs	Restrooms	site	Reed "Plumbing Issues - AFC" 10/5/26
Plumbing	Urinal flush valves (as built)	Sloan	Regal 186, 1.0 gpf	Chrome	all urinals	Restrooms	site	Reed 10/5/26
Plumbing	Urinals	American Standard (Allbrook 6550.001) or UT447E per AllTrades spec	Washout urinal	White	per plan	Restrooms	site · manual	Brook Plumbing vs Josh Specs (two different spec sets) ASSUMED
Plumbing	Lavatories	American Standard Lucerne 0355.012 or Zurn Z5340 (AllTrades spec)	20" x 18" wall-hung vitreous china	White	per plan	Restrooms	manual	Brook Plumbing vs Josh Specs ASSUMED
Plumbing	Lavatory faucets	ProFlo PFWSC3007 (AllTrades) or American Standard Chancellor 7022.201	Single handle 1.2 gpm	Chrome	per plan	Lavatories	site	Josh Specs / Brook Plumbing ASSUMED
Plumbing	Shower valves / heads	Olympia TD-2372-ADA i2 (ADA handheld) / American Standard TU662SG kit	Single handle shower trim w/ handheld	Chrome	per plan	Showers	manual	Josh Specs / Brook Plumbing ASSUMED
Plumbing	Double bowl sinks	Compass Manufacturing	003-513 33x22x6" double bowl	Stainless	per plan	Break / training		Specs/Double Bowl Sinks ASSUMED
Plumbing	Utility sink + wall faucet	American Standard Raleigh SS sink kit 20SB.332211C; B&K 123-009NL 8" wall mount faucet		Stainless / chrome		Training / laundry		Brook Plumbing ASSUMED
Plumbing	Water softener	Culligan	Hi-Flo 3e HCE-300-3 w/ hard water bypass; 30x50 brine tank, 3/4" valve; 3/4" vacuum breaker; 3" SS NPT flow meter		1	Mechanical	site · manual	Culligan inv. 6489609 (5/27/26)
Plumbing	Boiler / water heating	Navien	NFC-175 (from IFC)		per IFC	Mechanical	site	IFC only (plumbing in IFC is not as built) ASSUMED
HVAC	DOAS units	Alpha Aire (by AllTrade Heating and Air)	Alpha Aire II DOAS, VAV air-source heat pump w/ energy recovery, 8 ton		3	Mechanical + home locker room	manual	AllTrades DOAS invoice; Reed emails 8/17 + 9/8/26
HVAC	Other HVAC	Trane / Greenheck (IFC)	Trane 5 ton; Greenheck IDBH		per IFC			IFC families ASSUMED
HVAC	Dryer exhaust upgrade (proposed)	Dryer supplier (name not on file)	Industrial lint trap 8" to 12" + 1.5 HP inline blower		1	Laundry		Reed "Martinsville Dryer" 10/20/26 Pending approval
Electrical	Exterior LED wall packs	By AllTrade Heating and Air	LED wall packs (5 added: 2 south, 3 north) + emergency lighting at exits		5+	Exterior		Reed emails 8/27 + 10/1/26 Fixture model not on file
FF&E	Locker room clocks	Nevco	Locker room clocks (installer Andy)		4	Both locker rooms, coach office, officials	site	Nevco Locker Room Clocks thread 7/29-8/24/26 Model ASSUMED
FF&E	TVs	Not on file	60" flat screen wall mount (IFC); locker TVs mirror one PC		per IFC	Locker rooms, coaches room		IFC; Will Miers 8/31/26 ASSUMED
FF&E	Ice machine	Manitowoc	iP0450 half-dice/dice cube machine (IDP0450A ASSUMED)		1	Training 132	site · manual	Ice Machine Specs - 132 Training ASSUMED
FF&E	Reach-in refrigerator	Everest Refrigeration (ASSUMED brand)	EGSDH2 glass/solid half-door dual temp	Stainless	1	Training 132	manual	Refrigerator Specs - 132 Training ASSUMED
FF&E	Wall graphics	DG Graphics (Martinsville)	Vinyl wall wrap + window perf on door glass	School colors		Hallway north of locker room, doors		DG Graphics thread 7/21-8/24/26
FF&E	Washer / dryer	Not on file	Commercial washer + dryer			Laundry		Kyle 8/31/26 ASSUMED
FF&E	Benches (visitor locker)	Lee Company	Portable anchorless pedestal benches			Visitor locker room		Reed 9/14/26 Model ASSUMED
FF&E	Fire extinguishers + cabinets	Extinguisher Pro (owner)	Per Building C fire extinguisher plan			Per plan		Football Locker room thread 9/1/26 By owner
Site	Wrought iron fence + gates	Broyer Construction (installer)	Ornamental (wrought iron) fence, main gates	Black ASSUMED		Site perimeter		Reed emails 8/19, 9/8, 10/12/26 Manufacturer ASSUMED
Site	Chain link privacy fence	K W Fence (Earl Wagler)	Chain link around HVAC units + electrical service	Galvanized ASSUMED		HVAC + electrical		Reed "Fw: invoice" 10/20/26
Site	Concrete parking curbs	Broyer Construction	Precast wheel stops, pinned, ~24" to center from walk (Kyle)	Concrete	all stalls	Parking		AFC Floors thread 10/8-10/15/26 Spacing ASSUMED
Site	Artesian Well + mums	Broyer / landscape crew	Two-tier rock well, bucket + landscape pump; alternating red & yellow mums	Red / yellow		South lawn		Update from the AFC thread 9/2-9/8/26

Warranties

Item	Warrantor	Term	Start	Registration	Document
Building C work (general 1-yr correction)	GT Investments, LLC	1 year correction period after Substantial Completion; all other warranties issued in Owner name	2026-08-26 ASSUMED	n/a	AIA A104 Contract (Owner GM Development) §9.4, §18.2
Metal roof panels	Graber Post Buildings (manufacturer)	40 year (G-Rib 40 Yr 29 ga)	2026-08 ASSUMED	Not on file - ask GPB	GPB contract #71682
Wainscot / liner panels	Graber Post Buildings	10 year (G10 10 Yr 29 ga)	2026-08 ASSUMED	Not on file	GPB contract #71682
GPB building workmanship	Graber Post Buildings, Inc.	Limited: correct deficiencies; claims within 1 year of Substantial Completion	2026-08-26 ASSUMED	n/a	GPB contract #71682 §17, §28
Access control, cameras, network	APTEK	1 year hardware + labor from installation	Install date not on file	n/a	APTEK quotes #002421 / #002495
Baby changing station	Koala Kare (if KB300) / ASI (installed 9012)	KB300: 5 year limited incl. vandalism; ASI 9012 term not on file	2026-06/07 delivery ASSUMED	Not on file	Koala Kare KB300 spec sheet (installed unit is ASI 9012 - ASSUMED)
Water softener	Culligan	Manufacturer warranty - term not on file	2026-05-27 ASSUMED	Not on file	Culligan inv. 6489609; Hi-Flo 3e IOM
DOAS units	Alpha Aire / AllTrade Heating and Air	Term not on file	Startup 2026-09 ASSUMED	Not on file	Ask AllTrades
MEP installation	AllTrade Heating and Air	Term not on file (assume 1 yr per prime contract)	2026-08-26 ASSUMED	n/a	AllTrades proposal #101 (no warranty clause)
Epoxy flake floors	TAK Floor Coatings	Term not on file (sticky floor in officials RR under review 10/2026)	2026-06-19 ASSUMED	n/a	TAK invoice #75
Carpet tile	Milliken	Manufacturer warranty - term not on file	2026-07-25 ASSUMED	Not on file	Wagler inv. 4419
Flush valves	Sloan	Manufacturer warranty - term not on file	2026-10 (replacement) ASSUMED	Not on file	Reed 10/5/26
Signage	Sign manufacturer (spec)	5 years from Substantial Completion (Div 10 spec)	2026-08-26 ASSUMED	n/a	Building C Div 10 spec §1.6 (signs by owner/Sign Solutions - ASSUMED)
Masonry	L&L Masonry LLC	Term not on file (1 yr ASSUMED)	2026-08 ASSUMED	n/a	No warranty language in L&L quote
Site work / fence / paving	Broyer Construction	Term not on file; fence "as provided by manufacturer" (Div 32)	2026-10 ASSUMED	n/a	Building C Div 32 spec; Broyer contracts

Subcontractors & suppliers

Company	Trade	Contact
GT Investments, LLC (Brook / Reed Tarr)	General contractor	Reed Tarr, reed@dbtarr.com; Brook Tarr, brook@dbtarr.com; 812-278-0060
D B Tarr and Company	Architect / plans	8728 W Co Rd 175 S, French Lick IN; dbtarr@yahoo.com; 812-278-0060
GM Development Companies LLC	Owner rep / developer (contract owner)	Greg Martz, greg@gm-development.com, 317-417-5094
Graber Post Buildings, Inc. (GPB)	Building shell, metal roof/siding/trim, toilet partitions order	Darrell Wittmer, 812-636-7355, graberpost.com
L&L Masonry LLC	CMU walls, brick wainscot	Lamar Fox, LLMasonryllc@gmail.com, 317-512-8908
AllTrade Heating and Air	Electrical, mechanical, plumbing, DOAS	Josh (sales); Jacque Kendle, admin@alltradeheatingandair.net, 812-789-3065
Broyer Construction (Jack Broyer)	Site demo, utilities, concrete, asphalt, fence, landscaping, retention pond	Jack Broyer (contact details not in sources)
W & W Poured Walls, Inc.	Concrete cut + pour back (interior)	Sheldon Graber, sheldon@wwpouredwalls.com, 812-787-0180
TAK Floor Coatings	Epoxy flake floors	sales@takcoatings.com, 317-300-5017
Wagler Floor & Design	Carpet tile + cove base	Matt Wagler, Matt@waglerfloor.com, 812-257-0700
Matthew Knepp	Block showers (softball locker room)	mattslk@upwardmail.com
K W Fence (Earl Wagler)	Chain link privacy fencing	kwfence1@gmail.com
K and K Fence Co	Temporary fence panels (supply)	Kevin Banholzer, kbanholzer@kandkfence.com, 317-759-5891
Culligan Martinsville / Culligan Ultrapure	Water softener supply + install	Jason Alexander, 317-441-9242; 765-349-5351
Stoll Bros. Lumber	Solid surface countertops (measure + install)	812-636-4053
Cabinets To Go (Indianapolis)	Cabinets	Timothy Casteel, 317-608-0165
Indiana Door & Hardware Specialties	Door hardware	812-336-0813
CDF Distributors	HM doors, frames, mullions	cdfdistributors.com
Total Restroom	Toilet accessories supply	totalrestroom.com
Grabbars.com	Grab bars supply	grabbars.com
APTEK	Access control, cameras, networking (GM Development contract)	Damir Husejnovic, DamirH@aptek-ssc.com, 317-643-2726
Galaxy One	Low voltage / fiber	James Meade, james.meade@galaxyone.us
Live Wire	Lower electrical box N of ticket booth	Contact not in sources
Miller Pipeline (for CenterPoint)	Lower 2" gas line, new gas service	Contact not in sources
DG Graphics	Wall graphics + window perf	Matt Long, matt@dggraphicsindy.com, 765-349-9500
Nevco (installer Andy)	Locker room clocks	Contact not in sources
Hilario	Extra cleaning	Contact not in sources
Lee Company	Visitor locker room benches (per Reed 9/14/26)	Samantha Broach (billing), sbroach@leecompanyinc.com, 812-235-8155
Extinguisher Pro	Fire extinguishers (owner contract)	Via Kyle Stout
Sign Solutions (Indianapolis)	Signage (owner)	Via Kyle Stout - ASSUMED

Assumptions

Exterior colors follow the DLZ rendering (white walls, Galvalume roof). ASSUMED until Reed confirms.
Brick color ASSUMED red-brown. Brick height 48" per Change Order #1.
Plumbing in the IFC does not match what was built (per Brook). Piping and fixture locations are shown as a rough guide only.
Ground: Indiana lidar bare-earth DEM with ortho, graded to the site sheets A704-A706. The aerial predates construction. No lidar points.
Warranty start dates ASSUMED from the 8/26/2026 final inspection / partial C/O.
Where two spec sets disagree, both are listed and marked ASSUMED.

Open questions for Reed

Exterior colors: the GPB contract says "Colors to be determined". What are the actual roof, siding, trim, gutter and door colors?
Brick: which brick (maker, name, color) did L&L Masonry use to "match existing building"?
Siding profile: the GPB contract lists 10" Board & Batten but the IFC wall type is G-Rib. Which was installed?
Plumbing fixtures: there are two spec sets (American Standard in "Brook Plumbing" vs AllTrades "Josh Specs": UT447E urinal, Zurn Z5340 lav, ProFlo faucet, Olympia ADA shower). Which were installed?
Paint: the SW color numbers for "GPB Grey", "Positive Red" and "Duct Blue", and where the accent walls are.
Countertops: which LivingStone solid-surface color? Partitions: was Dark Blue final?
Baby changing stations: ASI 9012 was shipped, but Koala Kare KB300-01 was selected. Which is on the wall?
Warranties: GPB roof/panel registration, Culligan, Alpha Aire DOAS, Sloan, Milliken, TAK and AllTrades workmanship terms and documents. Is 8/26/2026 the Substantial Completion / warranty start date?
Polished concrete: who is the flooring contractor, and what is the final room list (plus the north restrooms Kyle asked for)?
Dryer exhaust upgrade (lint trap + blower): approved? Who supplies the dryer and washer (make and model)?
Wrought iron fence and gates: manufacturer, model and color? Was the parking curb spacing confirmed at 24" to center?
Exterior LED wall packs and emergency lights: fixture make and model (Kyle asked for exterior-rated specs)?
Nevco clock model, TV make and model, and the fire extinguisher cabinet type?
Broyer, Live Wire, Miller Pipeline, Nevco and Hilario contact details for the subcontractor list.
Retention pond: permitted and scheduled? (in Jack's scope)
